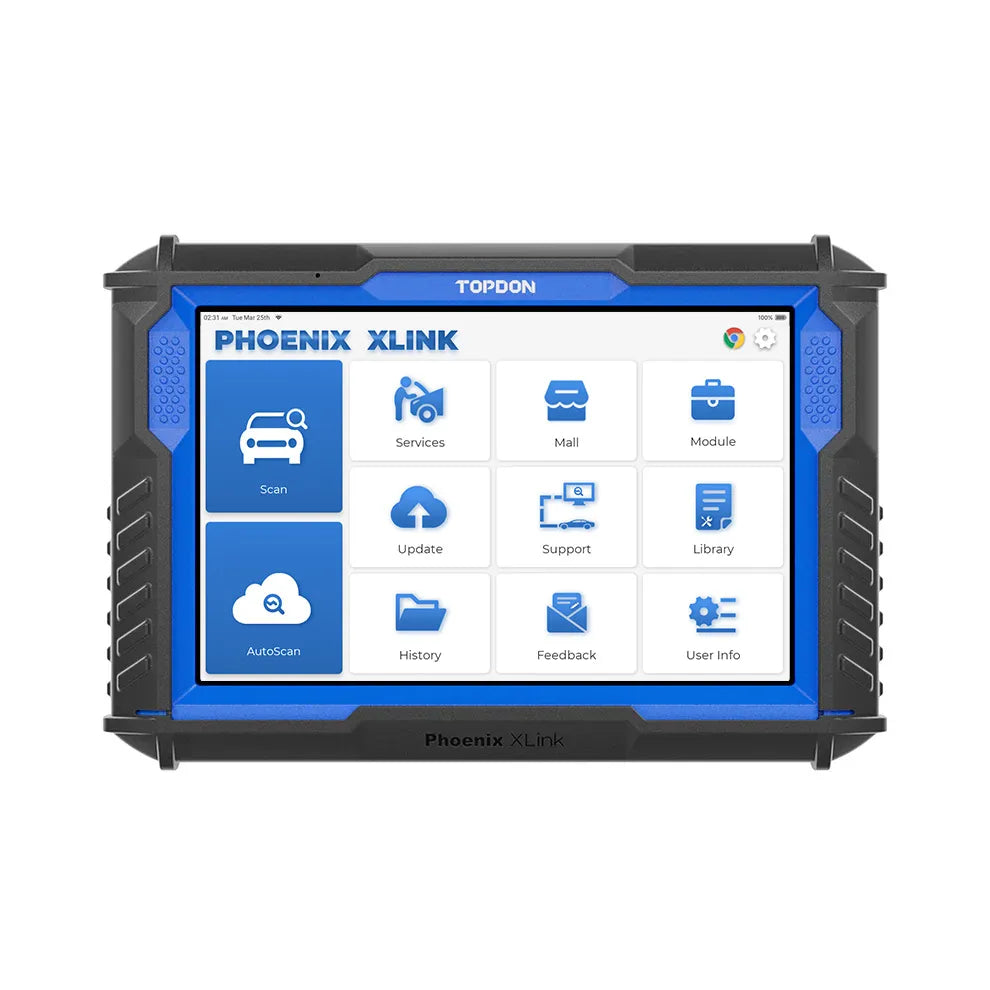

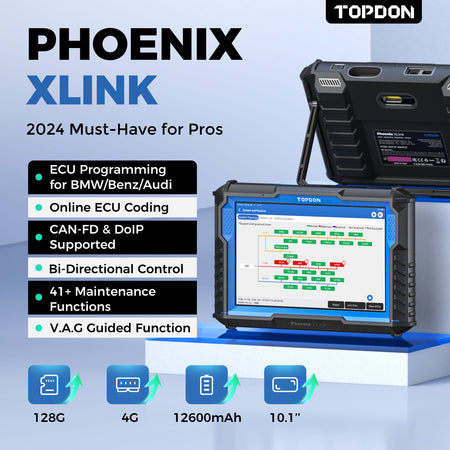

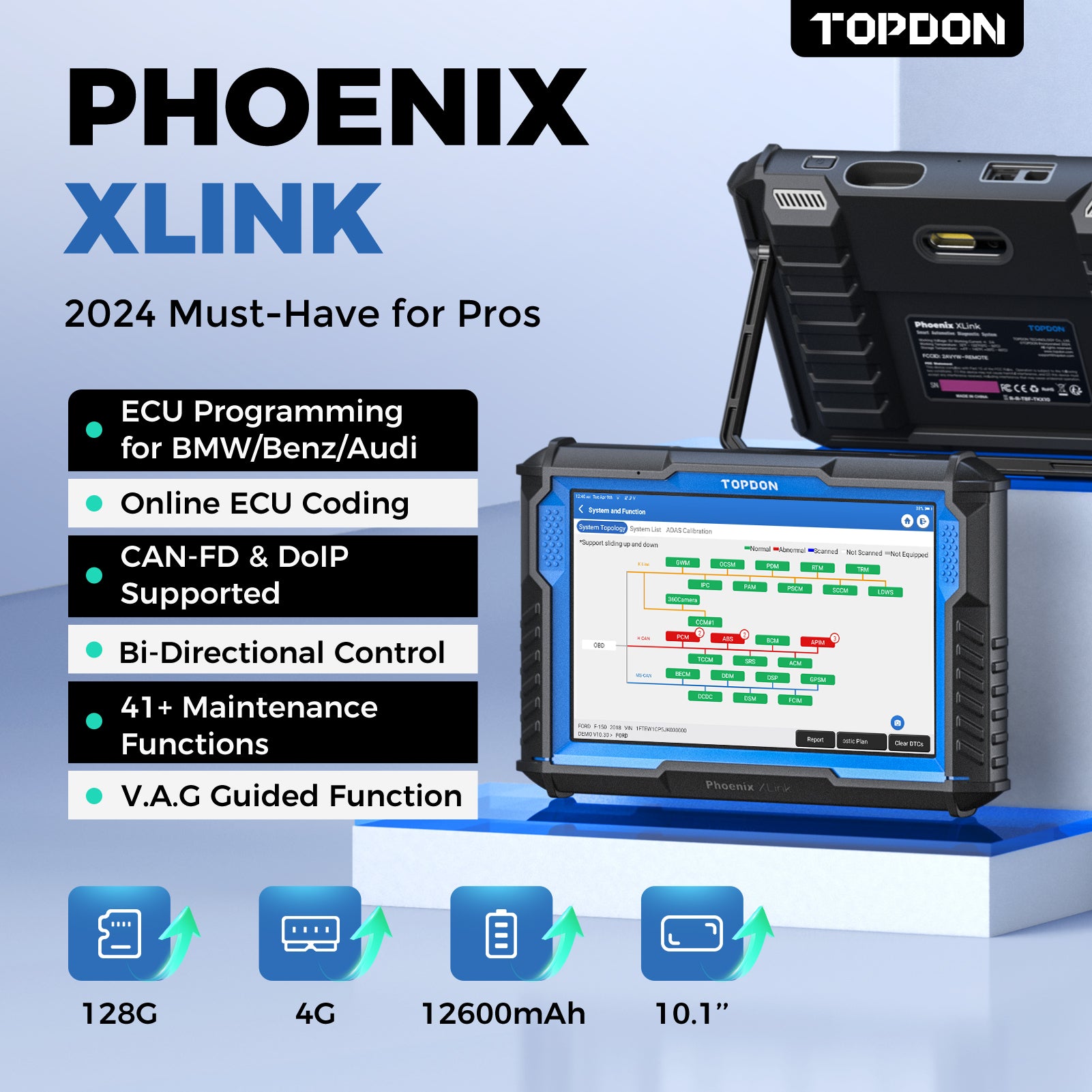

Phoenix XLink

Link to Speedy Diagnostics
Regular price $2,400.00 AUD

The Phoenix XLink is TOPDON’s professional automotive diagnostic tool that integrates robust hardware with versatile software functions to allow technicians to execute intricate tasks with heightened efficiency. Featuring cloud-based programming and online coding functions, the Phoenix XLink can handle complex repair needs including full system diagnostics on a broad variety of vehicles boasting CAN-FD and DoIP protocols. Enriched with over 41 maintenance functions, topology mapping, and bi-directional control, the Phoenix XLink streamlines workflow and amplifies productivity.

Features

Cloud-Based Programming

  • Supports advanced cloud-based programming tailored specifically for BMW, BENZ, and Audi vehicles. This feature enables technicians to update or reprogram a vehicle’s electronic units for streamlined software updates, ensuring swift access to new functionalities, reprogramming data for adaptation to new components, restoring ECU data and repairing ECU with data loss.

CAN-FD and DoIP Supported

  • Compatible with CAN-FD and DoIP protocols allowing seamless communication with more modern vehicles such as 2020-GM and Chrysler models; and enabling faster and more efficient diagnosis with stable connection.

Multi-System Simultaneous High-Speed Scanning

  • By supporting the CAN Bus multi-thread protocol, the Phoenix XLink can establish multiple parallel communication channels to concurrently access and interact with multiple ECUs, eliminating the need for one-by-one scanning. Enables high-speed simultaneous scanning up to 8 systems at a time to reduce the overall time and enhance efficiency.

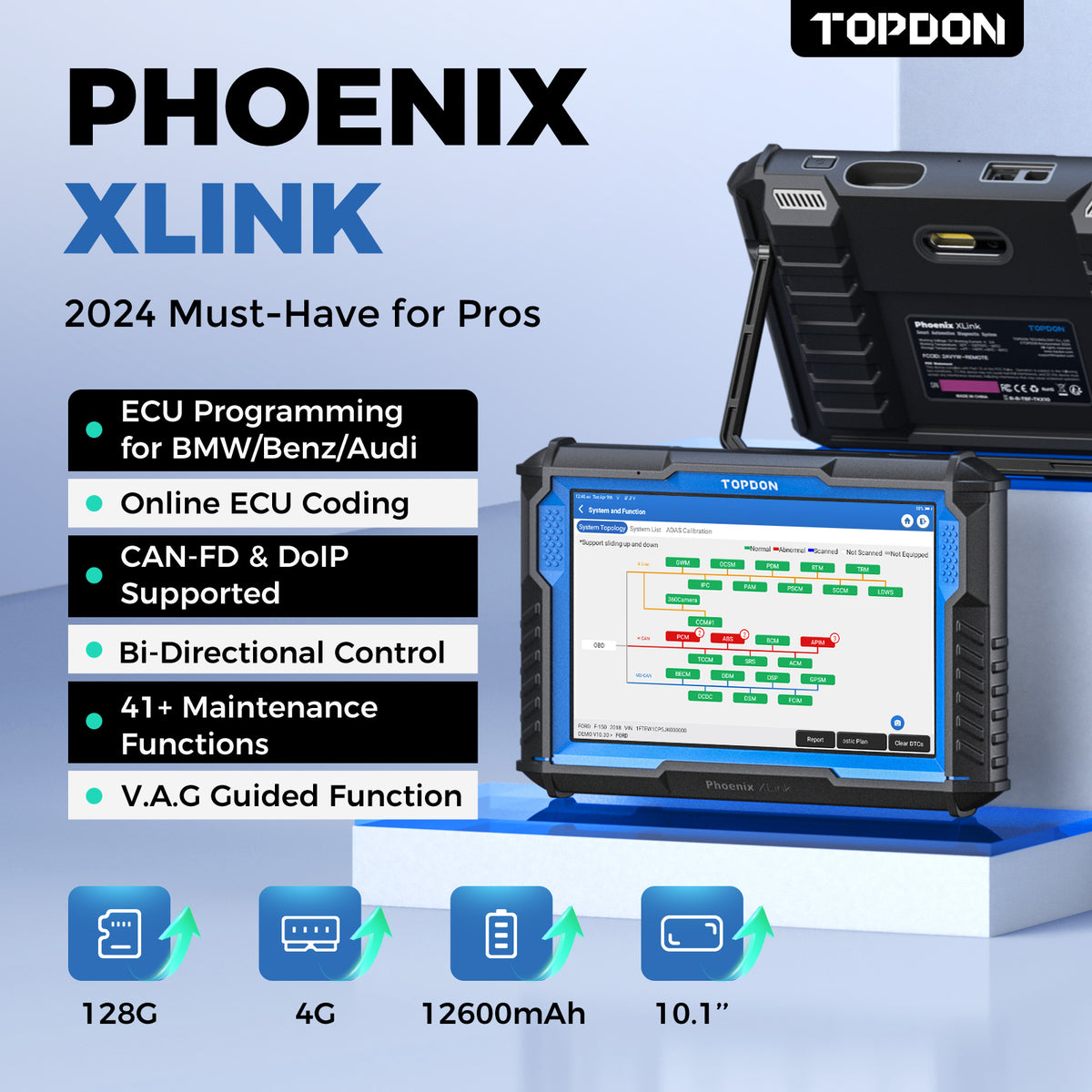

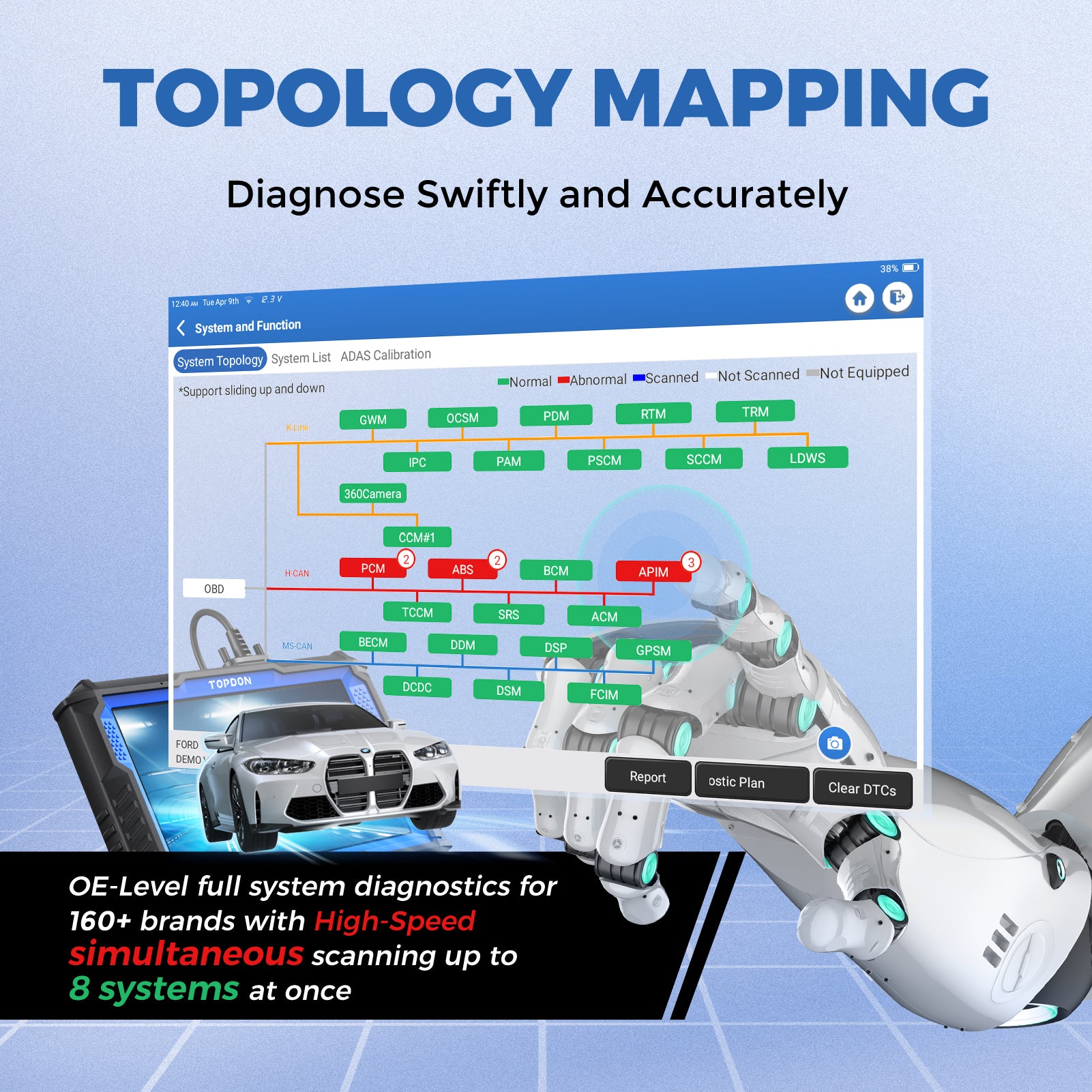

Easy-to-read Topology Mapping

  • The Phoenix XLink displays the structure and status of each system in an intuitive topology mapping. This visual representation can highlight faults and access ECUs directly, facilitating the identification of potential issues and addressing the root cause swiftly.

FCA Gateway Access

  • The ability to access the FCA gateway ensures that the Phoenix XLink can seamlessly integrate with newer vehicles, and allows quick and efficient diagnostic adjust for protected functions.

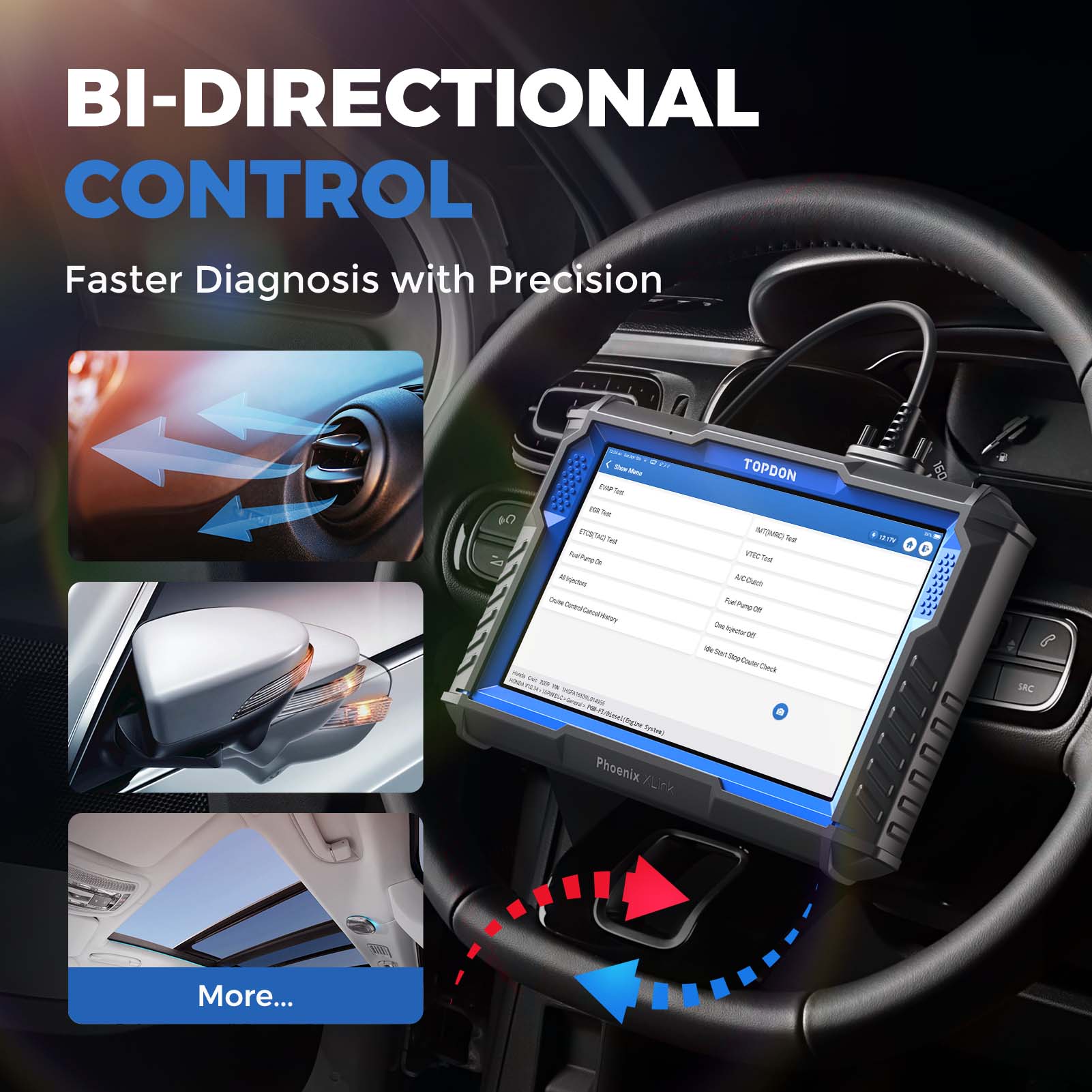

Bi-directional Control

  • The function of active tests establishes communication and control between technicians and vehicles, by sending commands to specific components, the scanner will localize issues precisely for accurate repairs. The scanner's capabilities extend across a spectrum of vital systems, including engine, transmission, airbag, ABS, ESP, TPMS, immobilizer and more.

41+ Maintenance Services

  • The 41 commonly used maintenance functions provide comprehensive services for vehicles, ensuring thorough maintenance and operational efficiency. Some of the functions include Oil Reset, SAS Reset, EBP Reset, BMS Reset, DPF, ABS Bleeding and more.
  • Note: Maintenance functions may vary by vehicle’s brand/model/year.

Full-system Diagnostic for 160+ Vehicle Models

  • Full-system diagnostics entails meticulous examination of all automotive systems including the engine, transmission, airbag, brake, steering, emissions control, and beyond. Allowing users to turn off warning lights and activate hidden functions, ensuring optimal performance and safety.

Intelligent Diagnostics

  • AutoVIN technology automatically identifies the vehicle information, one-click updates allow the software can be upgraded with one click, VAG guide function provides step-by-step instructions for optimized operations and simplifies the diagnostic process. Moreover, the Phoenix XLink displays the live data in a graphical format for intuitive monitoring, and 4 data streams can be compared in a single interface to assess performance for repair work.

Heavy-Duty Model Expansion

  • Featuring a built-in VCI module with robust support for 36V, the Phoenix XLink can enhance its abilities by expanding with heavy-duty vehicles such as trucks, buses, and larger equipment. Access a wider range of diagnostic routines and service procedures designed for heavy-duty vehicles.
  • Note: The additional software and hardware components tailored need to be purchased separately.

Full OBD functions

  • Allows comprehensive capabilities for the OBD system, technicians can read and clear DTCs, monitor real-time data and freeze frame data, test systems and components, and retrieve vehicle information. Moreover, the OBFCM function facilitates the uploading of fuel consumption data to local government data centers, ensuring compliance and contributing to environmental initiatives.

Data Report and Share

  • Automatically generates detailed diagnostic reports in XML, PDF, or CSV formats, which can be shared or printed directly via WiFi. Reports are customizable to meet specific demands and help technicians make well-informed decisions.

User Feedback and Support

  • Offering a direct avenue for users to report problems and receive prompt technical support with better user experience, suggest improvements by submitting feedback, and lead to continuous product developments and updates.

Specifications

Phoenix XLink:

  • Display: LCD 10.1", 1280 x 800
  • CPU: 4-Core Processor, 2.0 GHz
  • Operating System: Android 10.0
  • RAM: 4 G
  • ROM: 128 G
  • Battery: 12600 mAh / 3.8 V
  • Operating voltage: 9~36 V (Supports optional HD software)
  • Storage Temperature: -20 ℃ ~ 60 ℃ (-4 ℉ ~ 140 ℉)
  • Working Temperature: 0 ℃ ~ 50 ℃ (32 ℉ ~ 122 ℉)
  • Dimension: 291 mm x 199 mm x 50 mm (11.45" x 7.83" x 1.96")
  • Package size: 468 mm x 320 mm x 143 mm (18.43" x 12.60" x 5.63")
  • Net Weight: 1760.0 g (3.88 lb)
  • Multilingual Support: English, German, Spanish, French, Italian, Japanese, Portuguese, Russian, Polish, Turkish, Dutch, Hungarian, Chinese (Traditional), Korean, Greek, Slovak, Romanian, Arabic, Croatian, Slovenian, Finnish, Czech

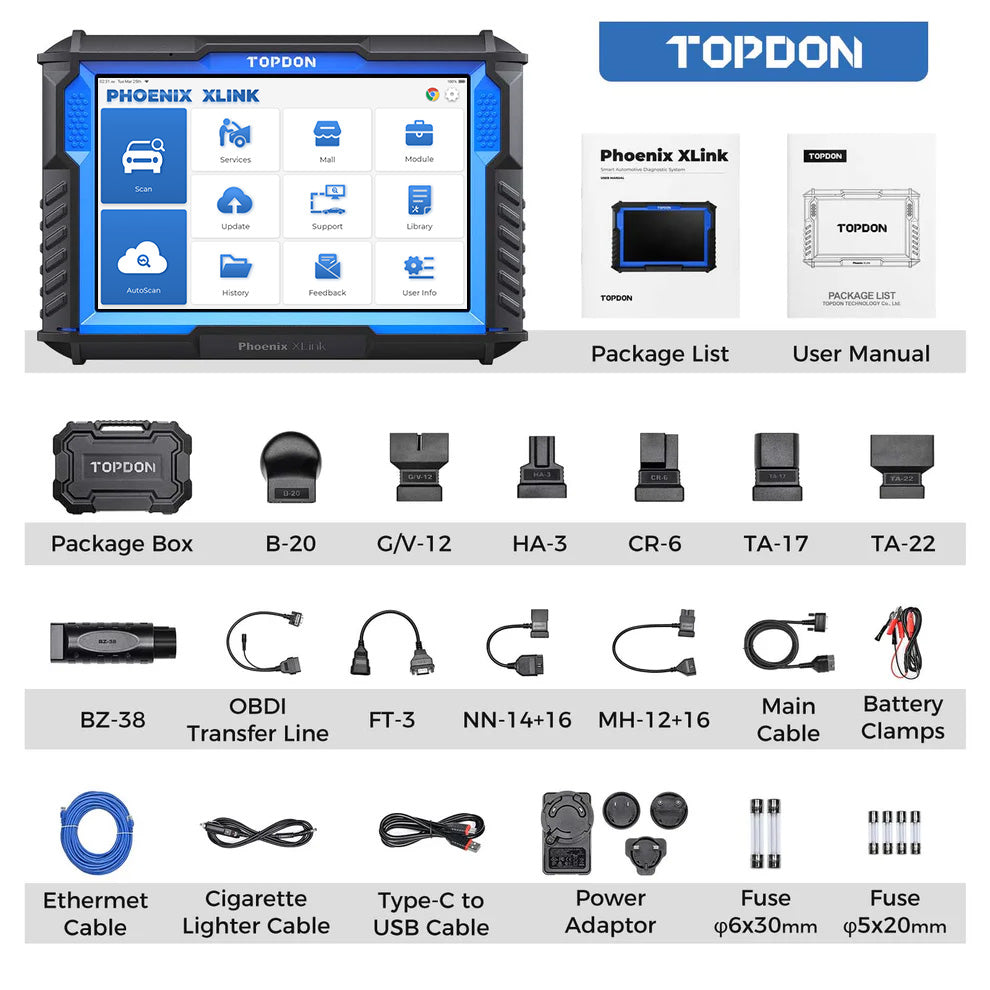

Packing List

  • Phoenix XLink
  • 16 Pin Diagnostic Cable, 2.0
  • Battery Clamps
  • Cigarette Lighter Cable
  • Fuse x 4 (φ5*20mm)
  • Fuse x 2 (φ6*30mm)
  • Type-C to USB Cable
  • OBD I Adapter BOX Transfer Line
  • NN-14+16 Nissan
  • FT-3 Fiat
  • BZ-38 Benz
  • TA-22 Toyota
  • TA-17 Toyota
  • G/V-12 GM/VAZ
  • B-20 BMW
  • CR-6 Chrysler
  • HA-3 Honda
  • M/H-12+16 Mitsubishi/Hyundai
  • Power Adaptor
  • Ethernet Cable
  • Packing List
  • User Manual

One Year Warranty.
Two Years of Free Software Updates.
