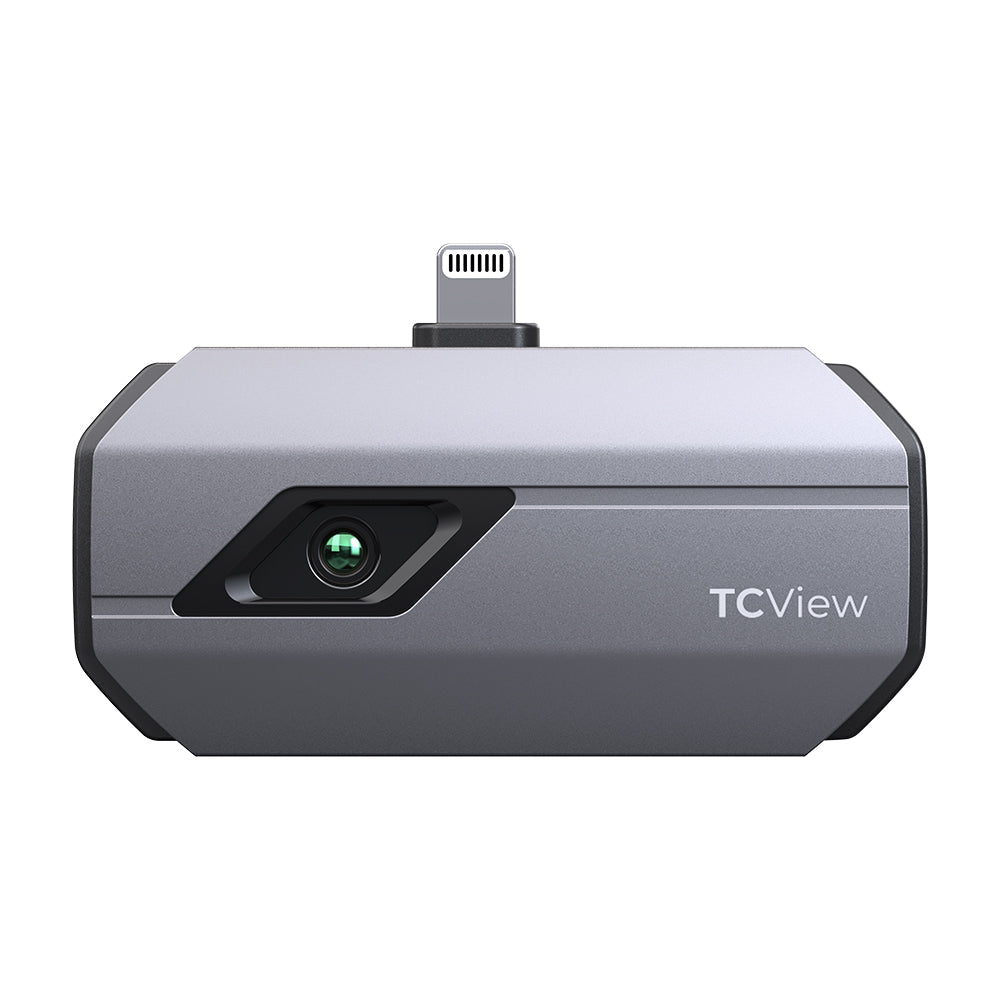

TC002 (iOS Devices- Lightning Port)

See More Than The Human Eye
Regular price $399.00 AUD

The TC002 thermal imaging camera for smartphones provides top-notch accuracy for temperature detection, insulation inspection, and circuit board inspection. With an ultra-high resolution of 256x192, the TC002 delivers clear and detailed thermal images. It offers a temperature detection range of ±3.6°F(2°C), with an accuracy of 0.1°C; and with its low power consumption of 0.35W, you can use it for extended periods of time without worrying about running out of battery. The high heat sensitivity of 40mk allows for precise temperature changes to be sensed.

Features

ACCURACY & CLARITY

  • The TC002 boasts a high-resolution of 256 x 192 pixels, providing clear and detailed thermal images of your target. Its high accuracy and clarity make it perfect for objects where surface temperature is difficult to distinguish.

BUILT FOR MOBILITY

  • The TC002 is compact and lightweight, measuring 2.8 inches by 1.65 inches by 0.55 inches, and weighing just 30 grams. Its portable design makes it easy to pair with iPhones and iPads, and the rugged aluminum case provides protection against drops, ensuring you can monitor temperature anywhere, anytime.

LOWER CONSUMPTION = LONGER BATTERY LIFE

  • The TC002 connects to your iPhone or iPad and is powered by the device; eliminating the need for a separate power source.
  • Its low power consumption of 0.35W ensures longer battery life, with 4-7 hours of usage on devices with a 3000-5000mAh battery.

TEMPERATURE RANGE AND ACCURACY

  • The TC002 boasts a wide temperature range of -4°F to 1022°F (-20°C to 550°C), making it suitable for temperature readings on a variety of objects. It also boasts serious accuracy, with a maximum deviation of ±3.6°F (2°C) or 2% of the actual temperature, and a temperature measurement resolution of 0.1°F (0.1°C).

EXTENSIVE APPLICATIONS

  • The TC002's precise temperature measurement capabilities make it an ideal tool for a variety of industries and applications. It allows for safe temperature readings from a distance; making it suitable for home inspectors, HVAC technicians, electricians, automotive technicians, and even farmers looking to monitor crops and livestock.

COMPLETELY CUSTOMIZABLE

  • Three Temperature-Reading Dimensions:
    With the TC002 App TopInfrared, users can manually select from three different dimensions to check temperature: Point, Line (with highest and lowest readings), and Surface (with highest and lowest readings).
  • Multiple Color Palettes:
    The TC002 offers 11 unique color palettes, allowing users to customize their temperature display to their preferred gradient colors.
  • Image Enhancement:
    Users can adjust the sharpness and contrast of the thermal image to achieve a customized view.

ADJUSTABLE TEMPERATURE RANGE

  • Featuring a DIY temperature range feature, the TC002 allows users to set maximum and minimum temperature limits. If the object temperature exceeds these limits, the camera will display corresponding color images, making it easier for users to understand and visualize the temperature of the target area.

INTUITIVE AND GRAPHICAL WAVEFORM

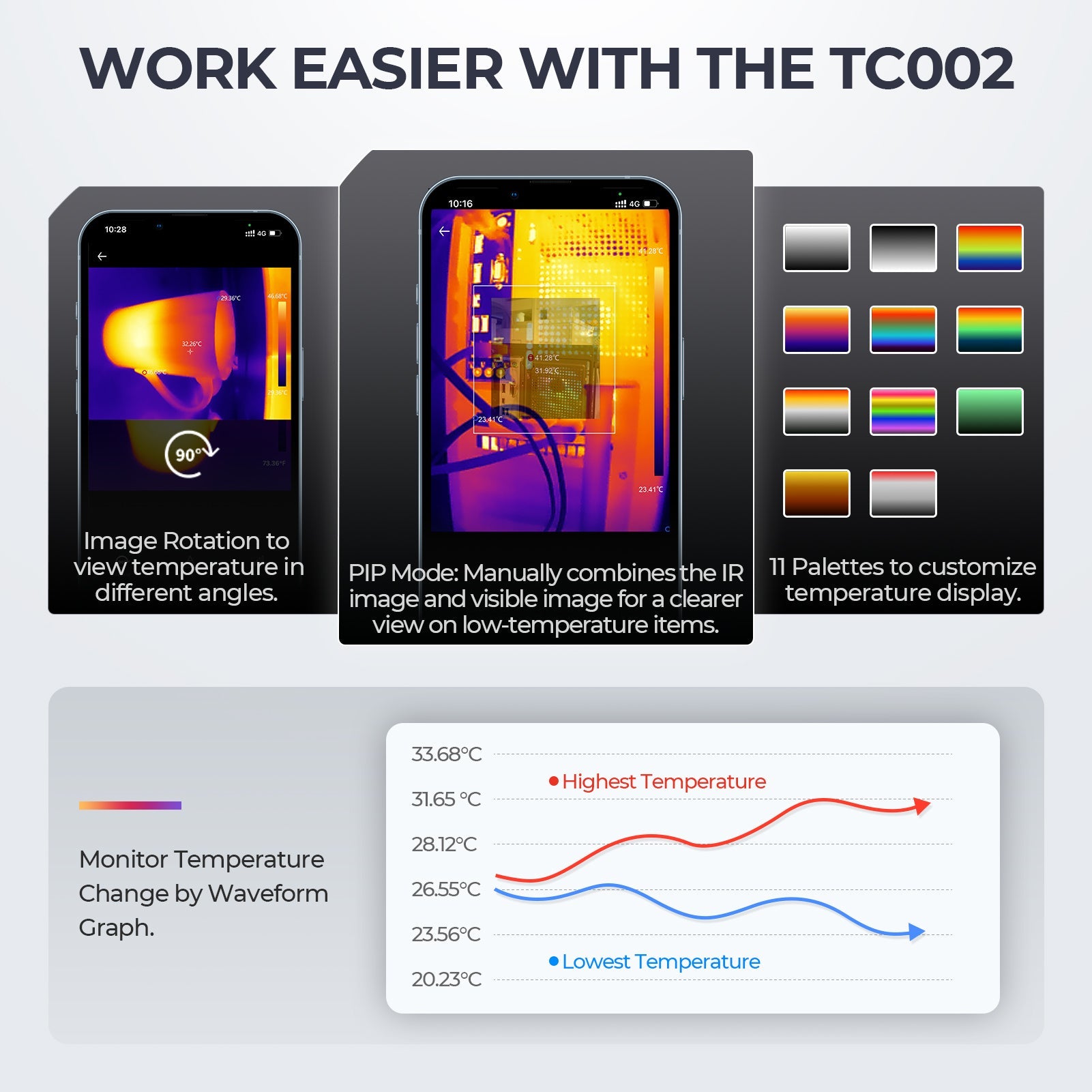

  • The TC002 thermal camera can take continuous temperature readings and store the data in its accompanying app TopInfrared. This data can then be used to calculate the high, low, and average temperatures of objects within its field of view over a certain period of time; allowing users to visualize the data in the form of a waveform graph.

        Specifications

        • Spectral Range: 8~14μm
        • Resolution256×192 Pixels
        • Pixel Size12μm
        • NETD: <40mK @25°C
        • Frame Rate25Hz
        • Object Temperature Range-20~150°C (-4~302°F), 150°C~550°C (302~1022°F)
        • Accuracy: Temperature Accuracy: ±3.6ºF(2ºC)
          Temperature Resolution: down to 0.1ºC (0.1ºF)

        • Weight30g
        • Dimension71*42*14mm (2.80*1.65*0.55 inch)
        • Cable Length50cm (19.69 inch)
        • Operating Systems: Compatible with iPhone & iPad

        Packing List

        • TC002 Thermal Imaging Camera
        • Carrying Bag
        • Multifunctional Adapter Cable
        • Type C Cable (From Dec. 2023)
        • Package Box
        • Quick User Guide
        • Cleaning Cloth

        Download

            One Year Warranty.
            Free Software Updates For Life.

            Free shipping for all orders in Australia.
