TC004

Pro Vision. Pro Results.
$529.00 AUD

SHARE THIS

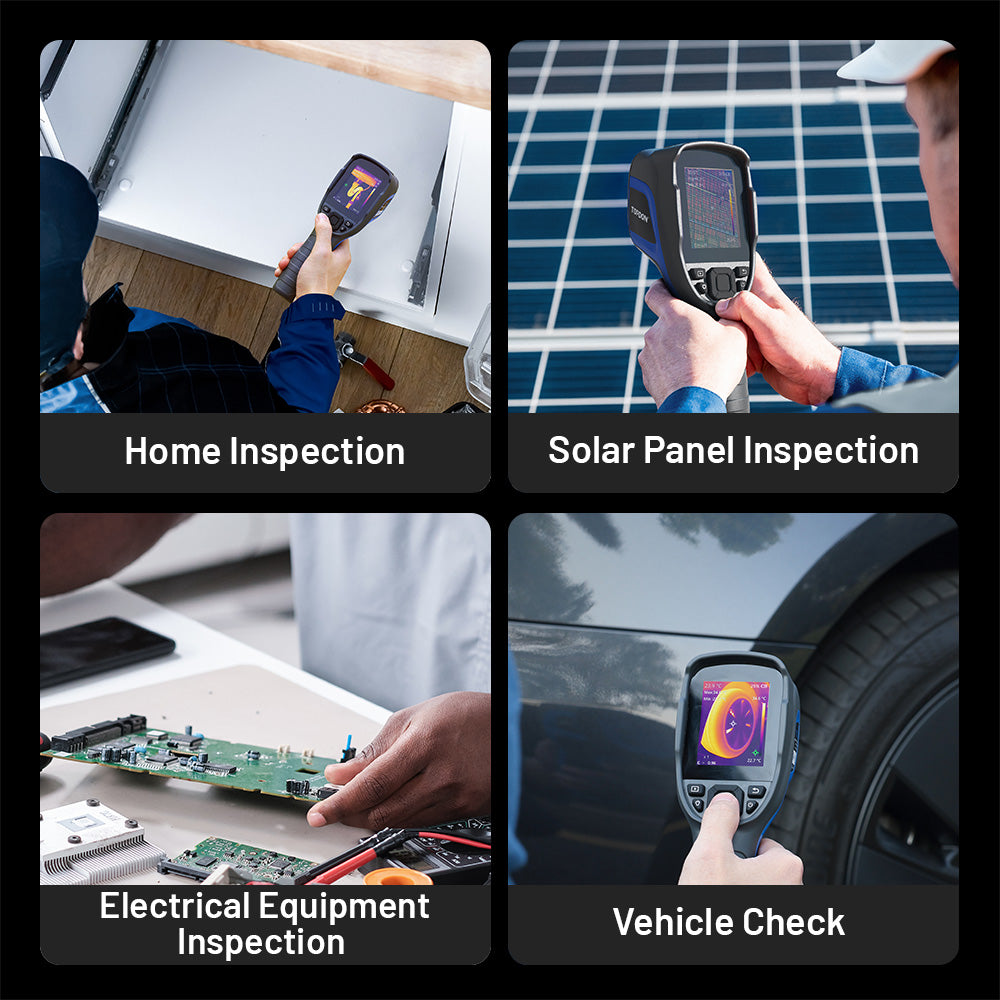

The TC004 is your professional thermal tool for efficient, high-accuracy thermal inspections across various industries. Whether you're inspecting buildings, electrical systems, or automotive components, the TC004 saves you both time and effort by providing quick, actionable insights.

Features

Sharper Images, Faster Diagnostics

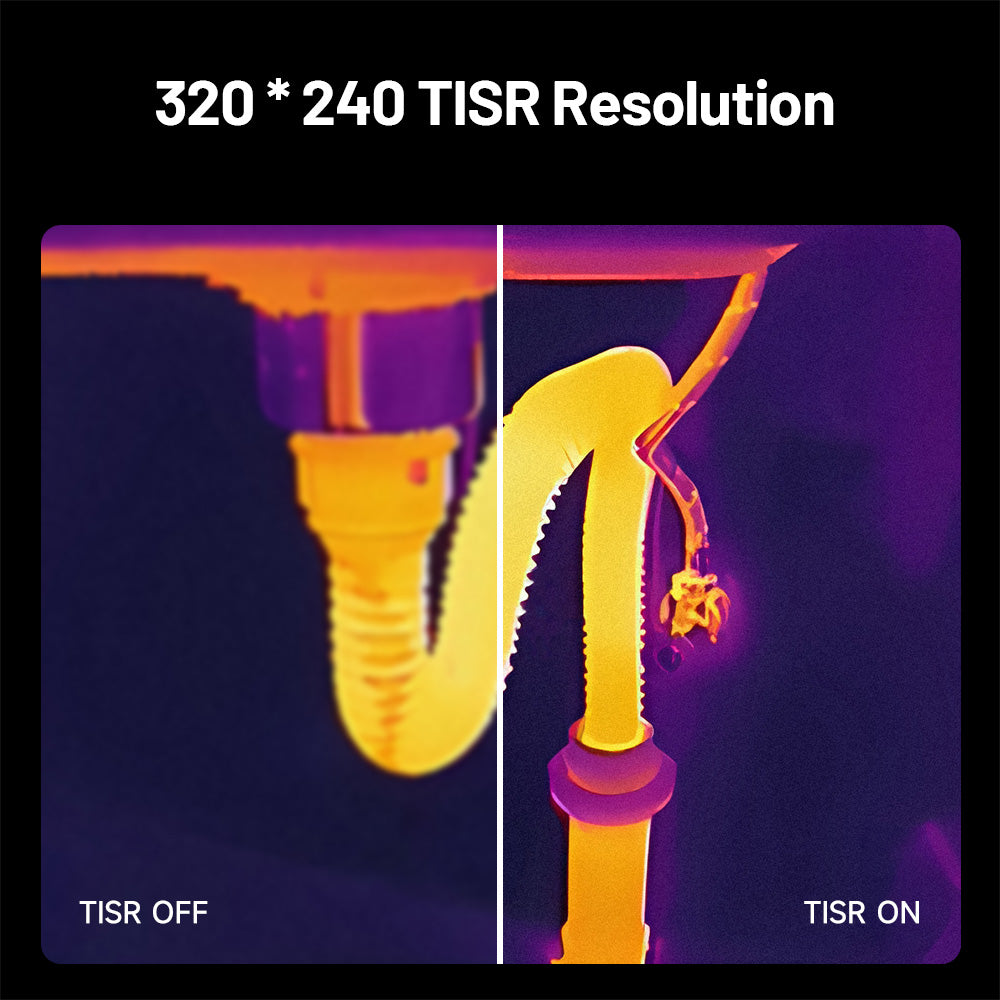

  • Imagine finding pipe leaks or electrical faults with 25% sharper thermal images. Our innovative TISR tech (Thermal Image Super Resolution) boosts image resolution, so you get the edge details you need for precise diagnostics.
  • TISR OFF: 256 * 192  |  TISR ON: 320 * 240

Three Measurement Modes & Auto-Detection

  • The TC004 has three different measurements to detect center, hot and cold spots.

  • The automatic detection feature allows users view temperature differences more visually.

Wide FOV

  • The TC004 also features a wide 52.5° x 39.5° FOV for to easily capture more objects in view. There is also no need to adjust focal length.

Wide Measurement Range & Accuracy

  • The TC004 features a wide temperature measurement range of -20℃ - +350℃. It can also measure temperatures with ±2℃ accuracy for precise temperature measurements.

  • NETD of this high-precision infrared sensor is less than 40mK and thermal imaging resolution displays down to 0.1℃. The tool's margin of error is less than 2%. This is to ensure the upmost accurate thermal readings.

PC Image Analysis and Instant Projection

  • Professional analysis software allows users to easily save and share diagnostic data on a PC. The TC004 also supports screen projection on a PC as well.

One-Day Runtime

  • A powerful integrated battery allows the TC004 to have a 12-hour runtime.

Built-in Fill LED Light

  • A built-in LED light allows users to record thermal readings without an additional light source.

Compact and Solid Design

  • IP54 rated for protection against water and dust and 2m drop proof allows you to be more carefree while using the device.

        Specifications

        • LWH: 9.45” x 2.76” x 3.54” (240 x 70 x 90mm)
        • Weight: 18.3 oz (520g)
        • Storage Temp: 14°F to 131°F (-10 to +55℃)
        • Working Temp: 14°F to 122°F (-10 to +50℃)
        • Screen Size: 2.8-inch Display (7.1 cm)
        • Resolution: 256 x 192 Pixels
        • TISR Resolution: 320 x 240 Pixels
        • Object Temp. Range: -4°F to +662°F (-20 to 350℃)
        • Spectral Range: 8 – 14μm
        • Image Frequency: 25Hz
        • FOV: 52.5° x 39.5°
        • Focal Length: 0.12 in. (3.2 mm)
        • Heat Sensitivity: <40mk

        • Memory Card: 32G

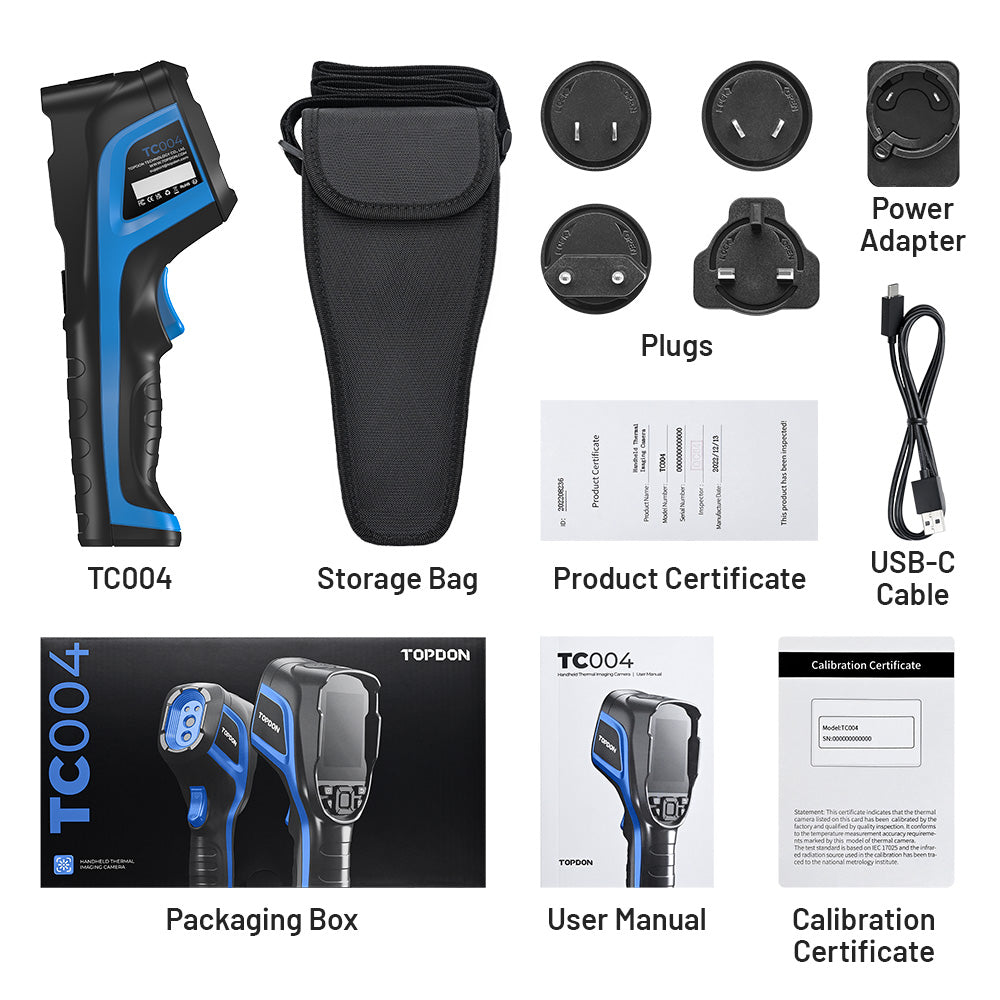

        Packing List

        • TC004 Thermal Camera
        • Power Adapter
        • Plugs
        • USB Data Cable
        • Calibration Certificate
        • Product Certificate
        • User Manual
        • Storage Bag
        • Package Box

          One Year Warranty.
          Free Software Updates For Life.

          Free shipping for all orders in Australia.
